Hytera BD612i DMR Two-Way Radio – Rugged, Reliable, Built for the Job Site
The Hytera BD612i is a tough, dependable digital two-way radio for construction, manufacturing, and security teams who need crystal-clear communication and durability they can count on. This compact commercial walkie talkie offers both analog and digital operation, making it perfect for businesses upgrading from legacy systems.
Whether you’re coordinating across a warehouse floor or managing safety on a construction site, the Hytera BD612i features long battery life, solid coverage, and a rugged shell that withstands rough use.
Key Features:
-
Dual-mode analog and digital (DMR) support for easy migration and maximum compatibility
-
Up to 16 hours of battery life for all-day performance
-
2-watt output power for dependable range across job sites and facilities
-
Compact and durable design with MIL-STD-810G compliance and IP66-rated water and dust protection
-
Clear digital audio that cuts through background noise and improves voice clarity
-
Channel scanning and voice announcement for easy hands-free use in fast-paced environments
-
Emergency alert and lone worker features for added safety
This is the ideal rugged two-way radio for construction crews, security teams, facility managers, and more.

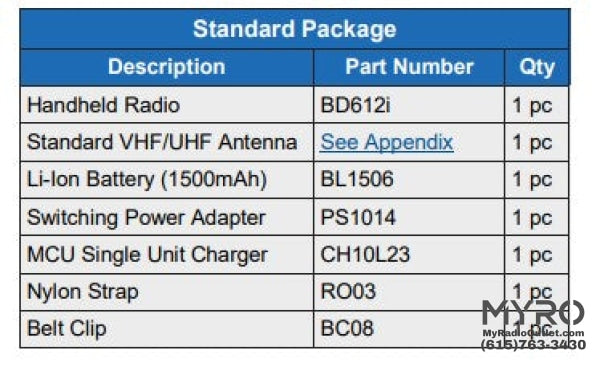

What’s Included
More Details
General
Frequency Range: UHF 400–470 MHz, VHF 136–174 MHz
Channel Capacity: 48 Channels (24 Analog, 24 Digital)
Zone Capacity: 3 Zones, 16 Channels per Zone
Channel Spacing: 25 / 12.5 kHz
Operating Voltage: 7.2V
Battery:
1500mAh Li-ion (Standard)
2000mAh Li-ion (Optional)
Battery Life (5/5/90):
1500mAh: 16 Hours (Digital), 12 Hours (Analog)
2000mAh: 22 Hours (Digital), 16 Hours (Analog)
Weight: 8.5 oz (240 g)
Dimensions: 4.25" x 2.13" x 1.15" (108 x 54 x 29 mm)
Frequency Stability: ±0.5 ppm
Antenna Impedance: 50Ω
Receiver
Digital Sensitivity: 0.22 μV (BER 5%)
Analog Sensitivity:
0.22 μV (Typical) @ 12 dB SINAD
0.4 μV @ 20 dB SINAD
Adjacent Channel Selectivity:
65 dB @ 12.5 kHz
70 dB @ 25 kHz (TIA-603)
Spurious Response Rejection: 70 dB @ 12.5 / 25 kHz (TIA-603)
Intermodulation: 65 dB @ 12.5 / 25 kHz (TIA-603)
Hum and Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Rated Audio Power Output: 0.5 W
Audio Distortion: ≤5%
Audio Response: +1 to -3 dB
Conducted Spurious Emission: < -57 dBm
Transmitter
RF Power Output:
VHF: High 5W, Low 1W
UHF: High 4W, Low 1W
FM Modulation:
11K0F3E @ 12.5 kHz
16K0F3E @ 25 kHz
4FSK Digital Modulation:
12.5 kHz Data Only: 7K60FXD
12.5 kHz Data and Voice: 7K60FXW
Conducted/Radiated Emission: -36 dBm @ 1 GHz
Modulation Limiting:
±2.5 kHz @ 12.5 kHz
±5.0 kHz @ 25 kHz
FM Hum and Noise: 40 dB @ 12.5 kHz, 45 dB @ 25 kHz
Adjacent Channel Power: 60 dB @ 12.5 kHz, 70 dB @ 25 kHz
Audio Response: +1 to -3 dB
Audio Distortion: ≤3%
Digital Vocoder Type: AMBE++
Digital Protocol: ETSI-TS102 361-1, -2, -3
Environmental
Operating Temperature: -22°F to +140°F (-30°C to +60°C)
Storage Temperature: -40°F to +185°F (-40°C to +85°C)
ESD Protection: IEC 61000-4-2 Level 4 (±8 kV Contact, ±15 kV Air)
Dust & Water Protection: IP66 Standard
Humidity: MIL-STD-810 C/D/E/F/G Compliant
Shock and Vibration: MIL-STD-810 C/D/E/F/G Compliant
Ordering Information
BD612i-V1: VHF 136–174 MHz, Antenna 146–174 MHz, 48 Channels
BD612i-U1: UHF 400–470 MHz, Antenna 400–470 MHz, 48 Channels
Hytera DMR radios are covered by a 3-year comprehensive warranty against defects in material and workmanship under normal use and service, and all other Hytera PoC, LTE, Multimode, and HYT analog radios are covered by a 2-year comprehensive warranty.
